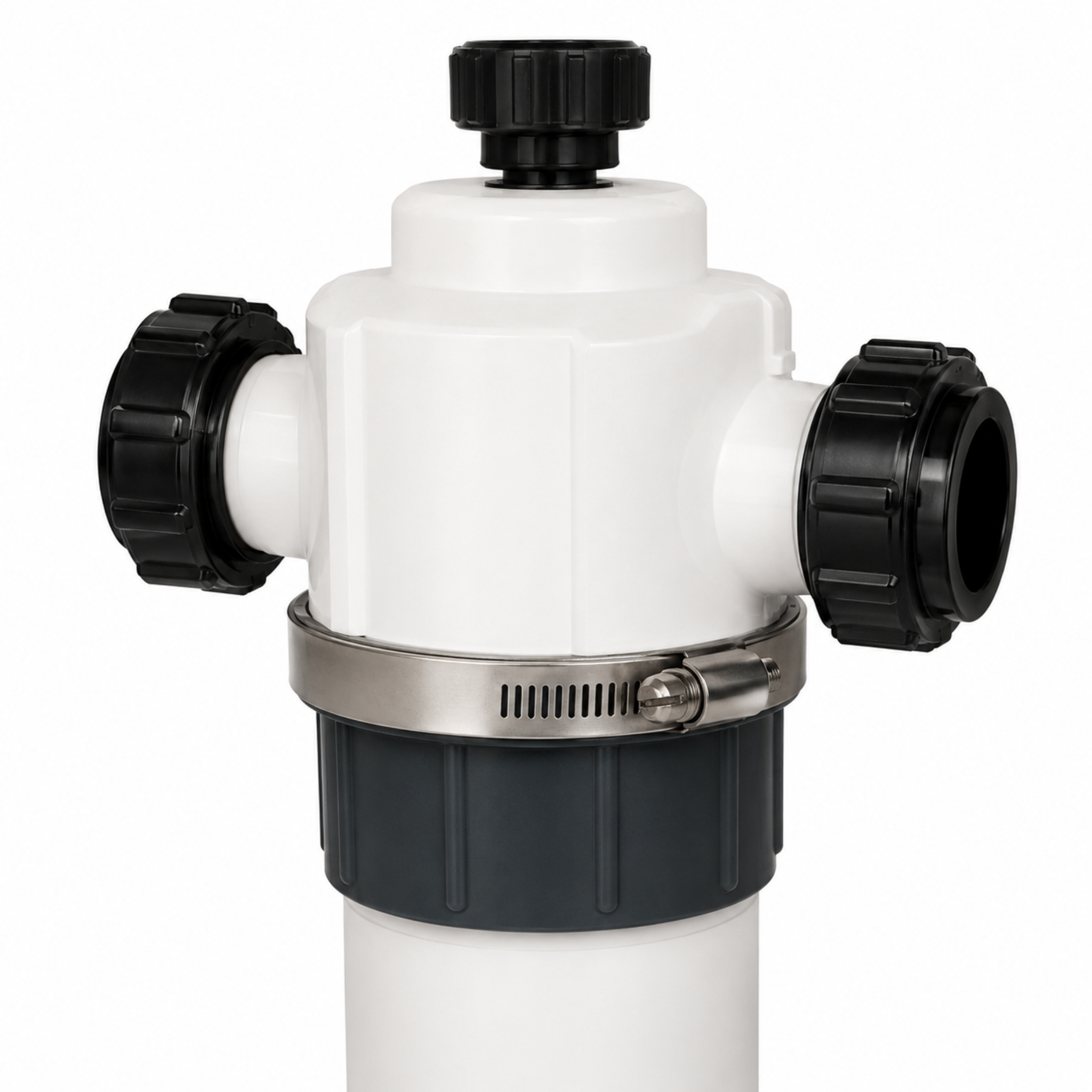

UF Membrane DOW Model : XP 51 IP IG

Product Overview

Before water ever reaches an RO membrane in a large-scale desalination or industrial plant, it usually needs to pass through a pretreatment stage that strips out suspended solids, bacteria, and organic material fine enough to foul the RO stage prematurely. This UF Membrane — the IntegraTec™ XP 51 IP IG (Dow) — is a hollow fibre ultrafiltration membrane built for exactly that role, along with standalone municipal drinking water and industrial water treatment applications. Made with XP™ Hydrophilic PVDF fibre and packaged in a short-module, height-restricted design suited to containerized installations, it's engineered for high operating recovery, strong air-scouring tolerance, and reduced chemical consumption during maintenance cleaning. For municipal water treatment plants, desalination RO pretreatment systems, and industrial or wastewater facilities looking to protect downstream membranes while cutting maintenance overhead, this is a purpose-built, plant-scale solution rather than a general-purpose filter.

What Is Ultrafiltration and How Does It Differ From RO?

Ultrafiltration and reverse osmosis are both membrane-based purification technologies, but they operate at very different scales and for different purposes. A UF membrane uses a low-pressure, hollow fibre structure with pores fine enough to trap suspended solids, colloidal material, bacteria, and viruses, while allowing dissolved salts and minerals to pass through freely. An RO membrane operates under much higher pressure and rejects dissolved salts and minerals as well, which is why RO is used for desalination and TDS reduction, while UF is used primarily for clarity, turbidity removal, and microbiological safety.

This distinction is exactly why UF membranes like the XP 51 IP IG are so widely used as an RO pretreatment stage: they remove the particulate and biological load that would otherwise foul an RO membrane's much finer pores, extending the RO stage's service life and reducing how often it needs cleaning or replacement. Pearl Water's overview of the role of RO membranes in water purification covers how these two membrane types typically work together in a full treatment train.

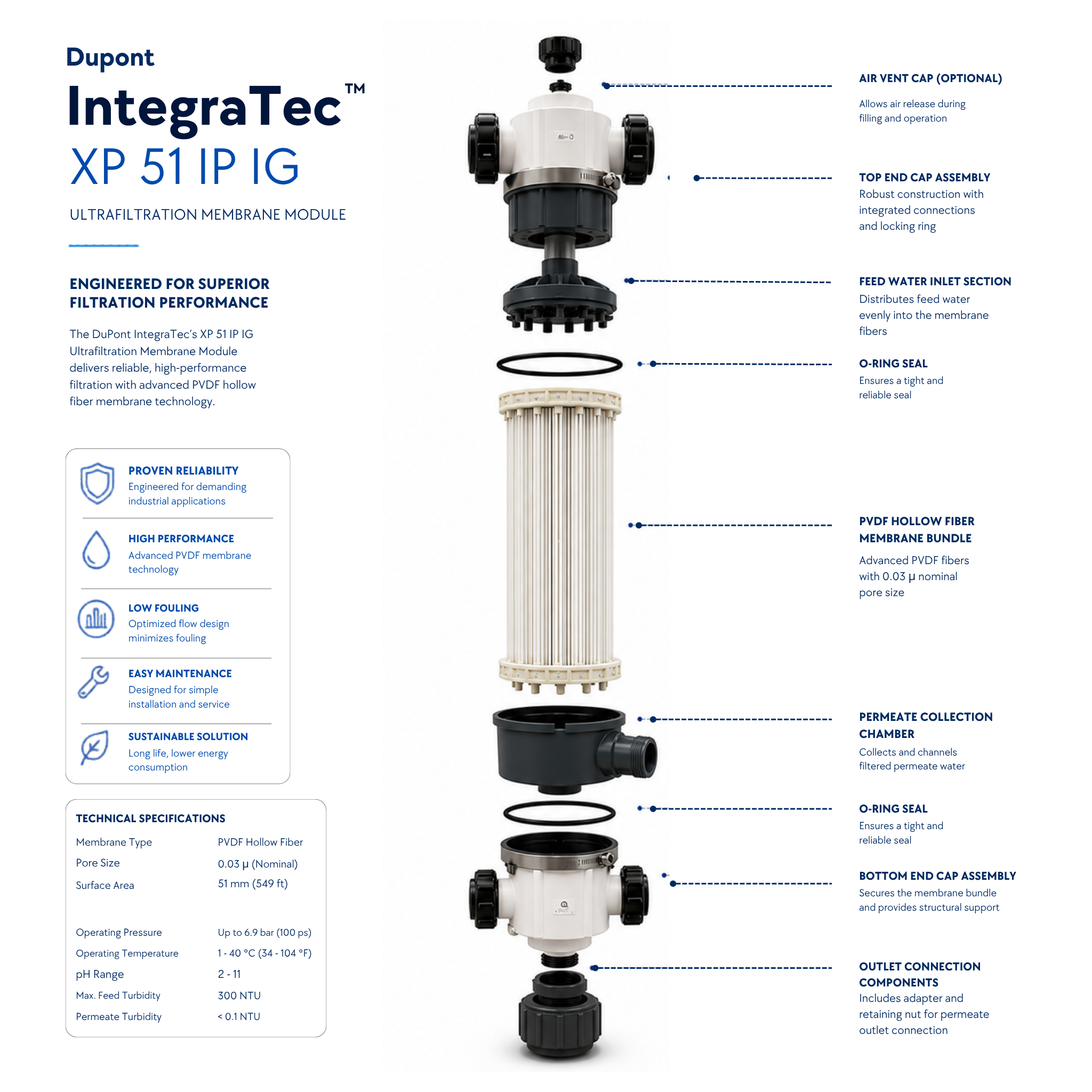

What Is the UF Membrane – IntegraTec™ XP 51 IP IG?

The XP 51 IP IG is a hollow fibre UF membrane element built around XP™ Hydrophilic PVDF (Polyvinylidene Fluoride) fibre technology. PVDF is widely used in industrial membrane construction specifically for its chemical resistance and durability under repeated cleaning cycles — a hydrophilic surface treatment further improves how readily the fibre wets and resists fouling in continuous operation.

Its "IP" short-module design is built specifically for height-restricted or containerized installations, using direct-coupling end caps designed for IP rack skid assembly rather than a standard freestanding vessel format. This matters for plants working within fixed container dimensions or retrofit spaces where a standard-length module simply won't fit. The membrane also includes a transparent filtrate elbow, allowing operators to visually inspect filtrate integrity without needing to interrupt the system or run a separate diagnostic test.

Installation and Maintenance Notes

Industrial UF membrane installation and commissioning is typically handled by qualified water treatment engineers, particularly for skid-mounted or containerized systems where correct alignment and sealing at the rack skid connection affects both performance and warranty coverage. A few operational points worth planning around:

• Initial commissioning should include a full integrity check using the transparent filtrate elbow before the system is brought into regular service.

• Air-scouring cycles should be set according to your specific feed water fouling characteristics — heavier organic load typically benefits from more frequent scouring within the membrane's rated tolerance.

• Maintenance cleaning follows the membrane's reduced-chemical protocol, which is designed to preserve fibre integrity over repeated cycles while keeping chemical consumption and associated costs down.

• Periodic visual inspection through the filtrate elbow helps catch integrity issues early, before they show up as a drop in downstream water quality.

Related Products

For standard vessel installations without height restrictions, compare the XP 77 IG Ultrafiltration Membrane, or the Toray HFU-2020AN Ultrafiltration Membrane as an alternative brand option. If you're specifying the downstream RO stage this UF membrane will feed, browse Dow RO Membranes including the 8040 DOW RO Membrane - BW30-365, the DOW RO Membrane BW30-400 (8040), or the Dow RO Membrane BW30 PRO (4040). For a complete plant setup, explore Industrial RO Plants, Industrial Membrane Housings, or Industrial RO Spares for pre-treatment and system components.

Built for Demanding Industrial and Municipal Filtration

When a plant needs reliable particulate and microbiological filtration in a space-constrained or containerized layout, this UF Membrane — the IntegraTec™ XP 51 IP IG (Dow) — delivers the fibre technology and operational efficiency of a full-scale ultrafiltration system without needing a standard-length installation footprint. Order it today and give your downstream treatment stages — and your maintenance budget — the protection they need.
