Water Softener Injector

Product Specifications

Product NameWater Softener Injector
ApplicationWater Softener Regeneration System
UsageBrine Suction and Resin Regeneration
MaterialCorrosion-Resistant Engineering Plastic
CompatibilityAutomatic and Semi-Automatic Water Softeners (check valve model)
InstallationEasy Replacement, Quick Installation
MaintenanceLow (clean periodically)

Price (Excl. GST) ₹999
Price (Incl. GST 18%) ₹1,179
Upfront Investment: ₹1,179
Quantity:
1

Need Help with this System?

Engineering Support Online

Have custom plant sizing requirements, hard water TDS queries, or need a technician site visit? Speak directly with our deployment engineers.

Product Description

Water Softener Injector for Brine Suction and Resin Regeneration

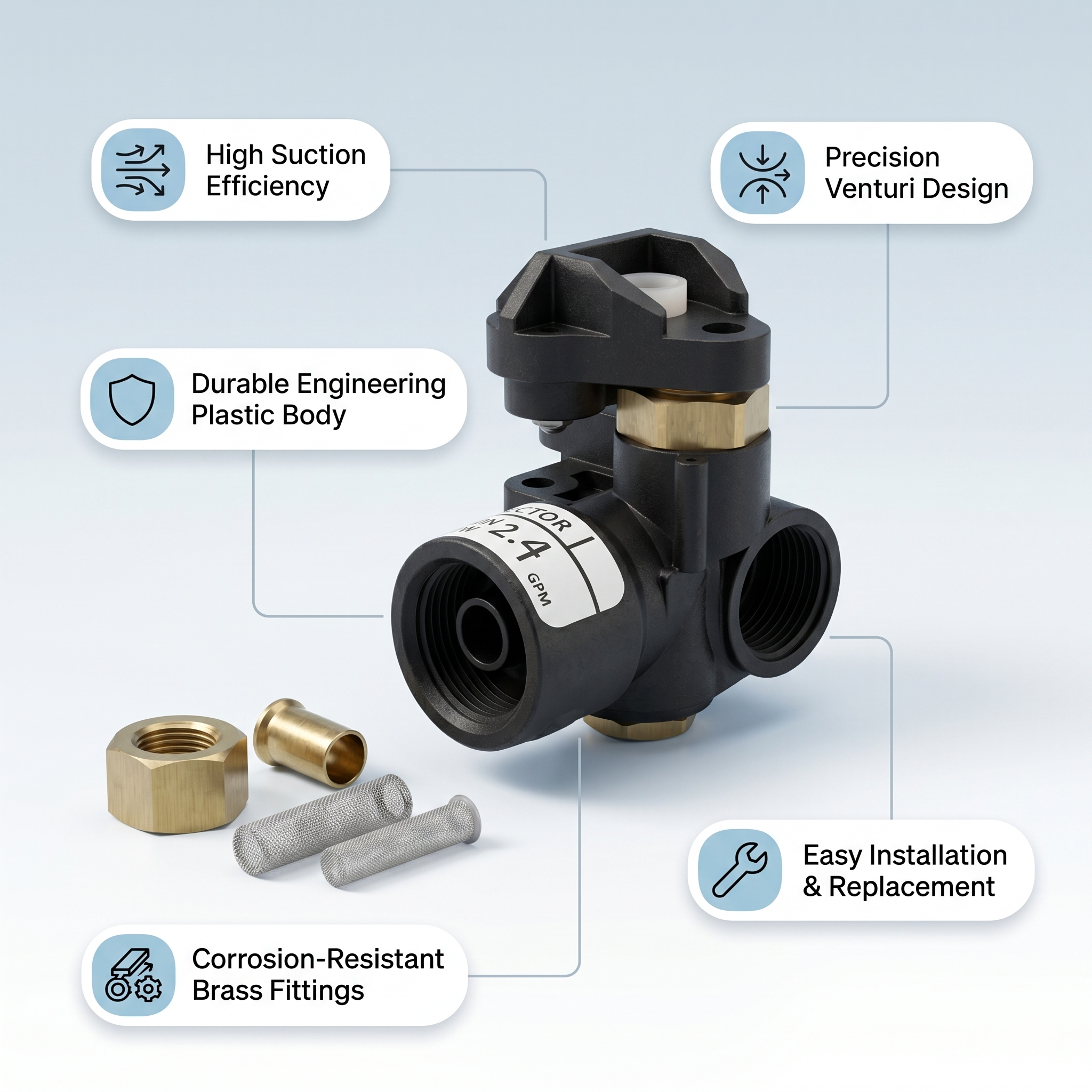

Quick answer: the Pearl Water water softener injector is a small spare part that creates suction to draw brine (salt solution) from the brine tank into the resin vessel during regeneration. A working injector lets the resin recover its capacity to remove hardness. A blocked or worn injector causes weak brine draw, poor regeneration and hard water coming out of the softener. It is made of corrosion-resistant engineering plastic and is used in automatic and semi-automatic water softeners (check your valve model for compatibility).

What is a water softener injector?

A water softener injector sits inside the control valve (multiport valve) of a softener. During regeneration, water passes through the injector at speed, which creates suction that pulls brine from the salt tank. That brine flows through the resin, swaps the captured calcium and magnesium for sodium and restores the resin’s capacity. Without a working injector, the resin cannot regenerate properly, and the softener slowly stops softening.

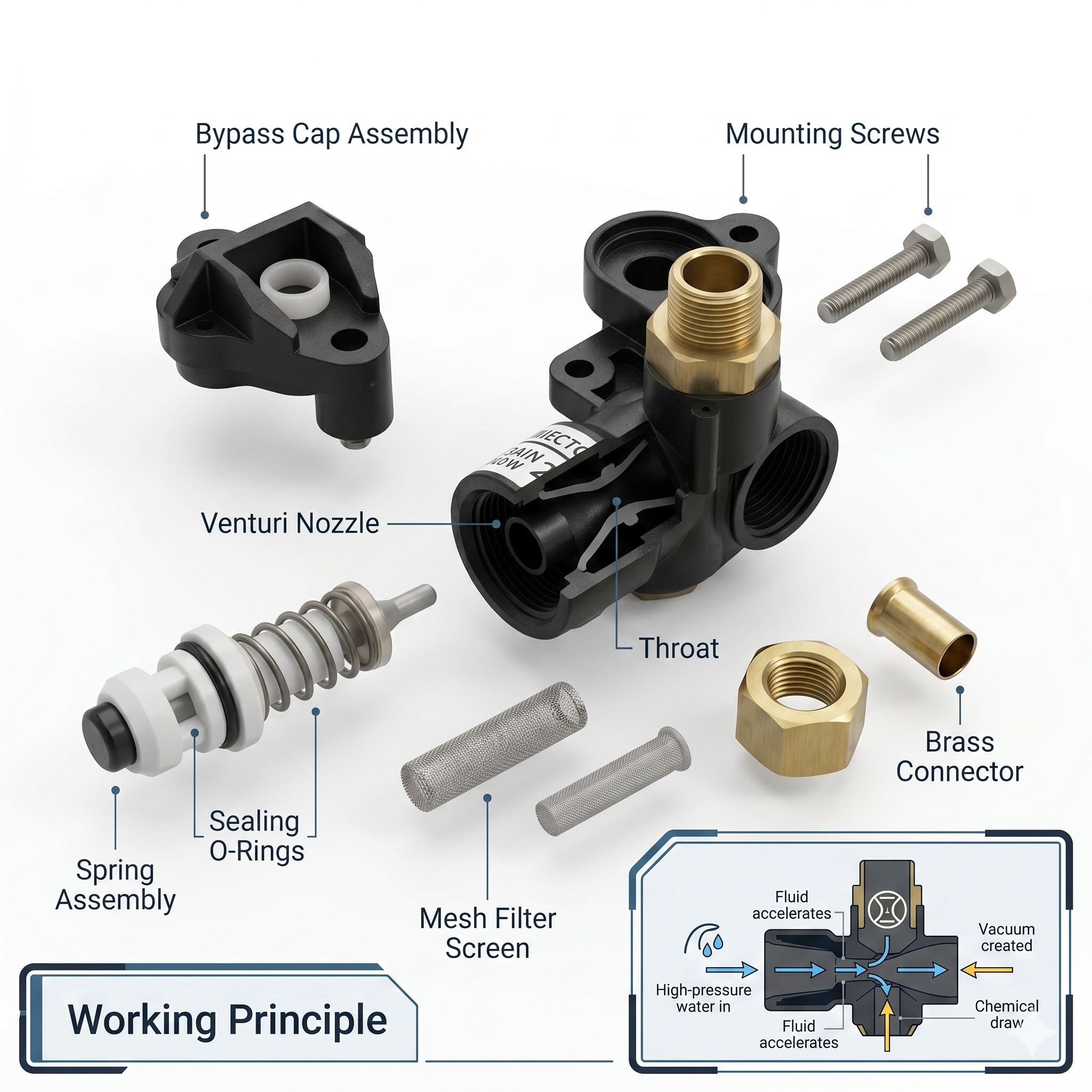

How does it work?

  1. The control valve starts a regeneration cycle.
  2. Water is forced through a narrow nozzle in the injector, which creates suction.
  3. The suction draws brine from the brine tank into the water stream.
  4. The brine passes through the resin bed and restores it.
  5. The valve then rinses the resin and returns the softener to service.

To learn more about how softeners work, read our Water Softener for Home in India guide.

Key features

  • Efficient brine suction for proper resin regeneration
  • Corrosion-resistant engineering plastic for a long service life
  • Easy replacement: quick to remove, clean or swap
  • Low maintenance with no moving parts
  • For automatic and semi-automatic softeners (check valve compatibility)
  • Suitable for domestic, commercial and industrial softeners

Signs your injector needs cleaning or replacement

  • The brine tank level does not drop during regeneration
  • Water coming out of your softener is hard, even after regeneration
  • Salt or sludge builds up in the brine tank
  • Regeneration takes longer than usual
  • You hear unusual noises from the valve during regeneration

A blocked injector, usually from scale or dirt, is a common cause of these problems. Clean it first, and replace it if it is cracked or damaged.

Where is it used?

  • Industrial water softeners and commercial softening plants
  • Domestic water softeners for homes and apartments
  • Boiler feed water treatment
  • Hotels, restaurants, hospitals and laboratories
  • Textile and pharmaceutical units

Check compatibility before you buy

Injectors vary by valve model and system size, so confirm yours before ordering. Send us your valve brand and model, or a photo of the old injector, on WhatsApp at (+91) 9582215137, or contact our engineers.

Related spare parts and systems

Buy water softener spare parts in India

Pearl Water Technologies supplies water softener spare parts, softener systems and RO systems across India, with service hubs in Delhi, Gurgaon, Lucknow and Bangalore. For help choosing the right part, contact our engineers.

Why This Product

WHY THIS PRODUCT

Why Choose the Pearl Water Softener Injector?

A reliable replacement part that keeps your softener regenerating properly and delivering soft water.

Efficient Brine Suction

Draws brine smoothly during regeneration so the resin restores its hardness-removal capacity.

Corrosion-Resistant Build

Engineering plastic construction that stands up to salt and continuous operation.

Easy to Replace

Quick to remove, clean and swap, which reduces downtime.

Helps Maintain Soft Water Quality

Proper regeneration means better hardness removal and less scale in pipes, boilers and appliances.

Not sure which injector fits your valve? Send the valve model or a photo on WhatsApp at (+91) 9582215137.

Specifications

Product Name Water Softener Injector
Application Water Softener Regeneration System
Material High-Quality Engineering Plastic / Corrosion-Resistant Material
Usage Brine Suction & Resin Regeneration
Compatibility Suitable for Automatic & Semi-Automatic Water Softeners
Installation Type Easy Replacement & Quick Installationr

FAQ's

PEARL WATER / PRODUCT SUPPORT

Frequently Asked Questions

Everything you need to know.

01What is a water softener injector?+
It is a spare part inside the softener’s control valve that creates suction to draw brine from the salt tank during regeneration. This restores the resin’s ability to remove hardness.
02What does a water softener injector do?+
It controls the flow of water and brine during regeneration. This makes sure the resin gets enough brine and is cleaned and rinsed properly.
03Is this injector compatible with all water softeners?+
It suits many automatic and semi-automatic softeners, but compatibility depends on your valve model and system design. Send your valve brand and model to our engineers on WhatsApp at (+91) 9582215137 or via Contact Us before ordering.
04When should I replace my water softener injector?+
Replace it if brine is not being drawn, the resin is not regenerating, soft water quality drops, or the injector is cracked or permanently blocked.
05Can a clogged injector affect softener performance?+
Yes. A clogged or damaged injector reduces brine flow, so the resin is not cleaned properly. Hardness removal then falls, and hard water can reach your taps and appliances.
06Can I clean a blocked injector instead of replacing it?+
Often yes. Remove it, rinse it and clear the nozzle gently without enlarging the opening. If it is cracked, worn or still blocked, replace it.
07Does the injector need electricity?+
No. It works on water pressure alone. The control valve and softener may need power to run cycles.
08How do I know if my softener’s brine tank is not drawing?+
Watch the brine tank during regeneration. If the water level does not drop, the injector, the brine line or the valve may be blocked. Contact our engineers for troubleshooting.
09What other spare parts do I need for my softener?+
Common parts include the multiport valve, resin, strainers and FRP vessels.
10What is the price of the water softener injector?+
It is priced at Rs. 1,179 including 18% GST (Rs. 999 excluding GST).
